Building Wire Mesh 3/16" Ladder Mesh Block Trellis ASTM A82

Increases lateral flexural strength ASTM A82 masonry wall reinforcement mesh

masonry wall reinforcement mesh Introduction:

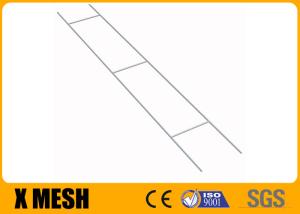

masonry wall reinforcement mesh is also named Block Truss Wire Mesh, Masonry Reinforcement Mesh. It is widely used in the building construction area, normally used in the wall and bridge reinforcement. Masonry horizontal joint reinforcement mesh include ladder-type and truss type. Ladder type reinforcements are designed to be embedded in the horizontal mortar joints of masonry walls. It consists of two parallel side rods with cross rods welded at 16” (400 mm) O. C., thus forming a ladder configuration. Overall measurement (side-to-side rod) is approximately 2” (50 mm) less than the nominal wall thickness.truss type reinforcement designed to be embedded masonry wall. It consists of 2 side-rods welded to a continuous diagonal formed cross-rod forming a truss design with alter nating welds not exceeding 8” (200 mm) O. C. overall. For use in single-wythe walls.

masonry wall reinforcement mesh is a prefabricated reinforcement for embedment in the horizontal mortar joints of masonry.

It is manufactured in 10′ 8″ lengths from wire conforming to ASTM A 82 / A82M for cold drawn steel wire.

It consists of two or more parallel and deformed longitudinal wires welded to a perpendicular cross wire spaced 16″ O.C. Out-to-out spacing is approximately two inches less than the nominal thickness of the wall.

MATERIAL : Iron wire & stainless steel wire 304/316
Qijie metal joint reinforcement products conform to:
ASTM A951 (Standard Specification for Steel Wire for Masonry
Joint Reinforcement)
Our products pass the testing of ASTM A951,We tested in USA .
Tensile Strength - 80,000 p.s.i. | Yield Point - 70,000 p.s.i. minimum
Zinc Coating:
Mill Galvanized coating: (0.1 oz/ft²)
Hot-Dip Galvanized after fabrication: (1.5 oz/ft²)
Wire Diameter:
9 gauge or 3/16ӯ
Side Rods and Cross Rods available in any combination of the above.
Cross Rods welded 16” O.C.
Block Size: Standard Sizes: 4” wall - 16“ wall.
Other widths available on special request.

masonry wall reinforcement mesh Standard Specification:

* 4” wall - 16” wall
* Other widths available on special request
* (S) Standard: 9 ga. side rods x 9 ga. cross rods
* (EH) Extra Heavy: 3/16” side rods x 9 ga. cross rods
* (SHD) Super Heavy Duty: 3/16” side rods x 3/16” cross rods

*Tensile Strength - 80,000 psi
*Yield Point - 70,000 psi

3/16" ladder mesh block trellis

ladder mesh block trellis ASTM A82

building wire mesh ASTM A82

Building Wire Mesh 3/16" Ladder Mesh Block Trellis ASTM A82 Images
